The Agentic Stack

AP3 is a privacy + integrity layer inside a broader “agentic stack” that enables agents from different orgs to safely discover, negotiate, and collaborate—and eventually do so as part of real commerce (payment/settlement) with auditability.

This document outlines a pragmatic engineering view of how that stack can evolve, staged by lifecycle phases and the concrete artifacts you would expect to exist at each stage.

Who this page is for

If you've already read Architecture and the core concepts (Roles, Commitments, Operations, Directives, Private APIs), this page zooms out one level. It's the lifecycle view: where AP3 fits among neighboring concerns like identity, negotiation, settlement, and audit, and what each stage of that lifecycle looks like in engineering terms — what you build, what you publish, what you check, and what you sign.

You don't need to implement every stage on day one. Most teams start at Build → Publish → Discovery → Execute and grow into negotiation, proofs, and settlement as the use case matures.

Big picture

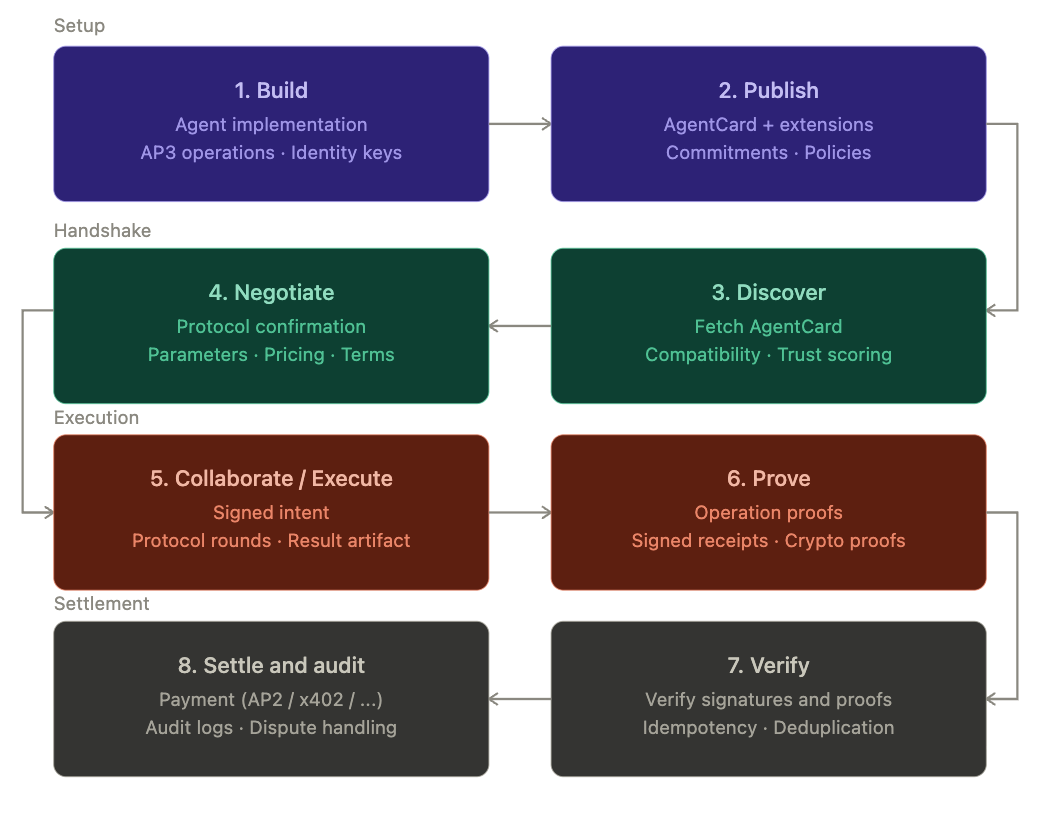

Agent protocol lifecycle

Stage 1: Build (what you ship)

Engineering components that need to exist locally:

  • Agent runtime: framework adapter (ADK/CrewAI/LangGraph/etc.), tool routing, message ingestion.
  • AP3 integration:
    • middleware/executor that keeps protocol traffic in structured data (e.g., A2A Part.data)
    • operation implementations (e.g., PSI), state handling, bounds checking.
  • Identity:
    • long-lived signing keys (per agent identity, not per process)
    • rotation strategy (publish-next-key, overlap window, revocation).
  • Policy controls:
    • inbound/outbound allowlists, request size bounds, rate limits, per-peer quotas.
    • consent + provenance rules (what inputs are allowed to be used in private compute).

Deliverables:

  • A stable runtime boundary between LLM reasoning and protocol execution.
  • A stable crypto boundary between identity keys and protocol/session keys.

Stage 2: Publish (what you advertise)

Public artifacts a peer needs to interact safely:

  • AgentCard with:
    • supported AP3 roles and operation types
    • AP3 public keys (and rotation metadata)
    • commitments (metadata + signatures)
    • URLs / interfaces / transport bindings.
  • Commitments (signed):
    • what dataset shape you are willing to compute against (structure/format/count/freshness)
    • optionally a data hash or schema hash (future: proofs, membership commitments, etc.).
  • Operational policies:
    • limits (payload sizes, TTLs), SLAs, pricing signals (if commerce), and audit expectations.

AP3 today: commitment signatures and canonical directive signing are foundational “publish” mechanics.

Stage 3: Discovery (who can I work with?)

Discovery is where ecosystems usually break unless engineered carefully.

What implementations should do:

  • Fetch + cache AgentCards with TTL and key-rotation awareness.
  • Compatibility evaluation:
    • operation match (e.g. PSI) and version match (operation_id)
    • parameter compatibility (data shape constraints, operation limits)
    • policy compatibility (allowed peers, jurisdictions, freshness expectations).
  • Trust evaluation:
    • verify card signatures / key provenance (future)
    • reputation signals (future), denylist/allowlist, org boundary rules.

AP3 today: compatibility scoring (possibly custom) + trust anchored on AgentCard public keys.

Stage 4: Negotiate (how will we collaborate?)

For “serious” collaboration/commerce, peers must negotiate before any compute:

  • Protocol selection: operation_id, versions, transport binding.
  • Limits: payload bounds, timeouts, retries, and fees.
  • Security terms:
    • whether you require counterparty receipts (receiver-signed acks)
    • whether you require proofs (TEE attestation, ZK, etc.)
    • what must be logged (and what must never be logged).
  • Commercial terms (future):
    • quoting, prepaid vs postpaid, settlement rail, refund/dispute policy.

Engineering note: negotiation should be idempotent, signed, and have an explicit expiry (avoid “sticky” terms that drift over time).

Stage 5: Collaborate / Execute (the private compute lane)

This stage is where AP3 primarily lives.

Expected mechanics:

  • Signed intent that binds:
    • operation type and participants
    • session id, expiry
    • replay protection (nonce) and per-envelope payload binding (payload_hash)
  • Protocol rounds carried in a stable on-wire envelope schema.
  • Result artifact returned with minimal disclosure (e.g., boolean, bounded score) + metadata.

Engineering invariants:

  • Protocol traffic stays out of LLM prompt space (structured lane only).
  • Receiver must be safe under retries (replay protection + per-round idempotency).
  • All signature inputs are canonicalized (cross-language verification).

Stage 6: Prove (make results harder to fake)

“Proof” is where the stack upgrades from “privacy-preserving messaging” to verifiable compute.

Potential proof mechanisms (future, per operation):

  • TEE attestation: receiver proves it executed approved code in a specific enclave measurement.
  • ZK proofs: initiator/receiver proves a statement about the computation without revealing inputs.
  • Signed receipts: counterparty returns an explicit, signed acknowledgment of a specific round/result.

AP3 scaffolding today: OperationProofs fields exist as placeholders; the long-term goal is to make them real and operation-specific.

Stage 7: Verify (automated acceptance of outputs)

Verification is the local “gate” before an agent uses a result:

  • Verify directives signatures (intent/result).
  • Verify commitments signatures and freshness/expiry.
  • Verify proofs (TEE/ZK/receipts) according to policy.
  • Enforce dedupe and replay windows.

Engineering guidance:

  • Make verification deterministic and testable (pure functions where possible).
  • Produce structured “accept/reject reasons” for audit + debugging.

Stage 8: Settle & Audit (commerce-grade operations)

This stage turns collaboration into commerce and compliance:

  • Settlement (future):
    • bind negotiation terms + verified result to an invoice/payment flow
    • support multiple rails (AP2/x402/MPP family) behind a stable interface.
  • Audit logs:
    • store only minimal, policy-approved metadata (avoid sensitive inputs)
    • retain signed artifacts (intent/result/receipts) and verification decisions.
  • Disputes:
    • reproduce verification decisions from stored artifacts
    • key revocation and partner isolation.

Engineering note: auditability is easiest if every phase produces small signed artifacts with explicit expiries and stable canonical serialization.

How AP3 fits into the stack (engineering mapping)

  • Transport: AP3 rides inside an inter-agent protocol (today: A2A).
  • Discovery surface: AP3 capabilities are published in AgentCards as an extension.
  • Trust anchors:
    • AgentCard public keys anchor directive/commitment signatures
    • operation identifiers anchor compatibility (and later: proof verification logic).
  • Execution boundary:
    • protocol logic should be isolated from LLM execution paths (middleware/executor pattern).

What “future AP3” likely adds (high signal)

  • Receiver-signed receipts (final attestation round) for better non-repudiation.
  • Key rotation & revocation semantics in discovery + verification.
  • Operation-specific proof schemes (TEE/ZK), with explicit policy toggles.
  • Standard negotiation artifacts (signed terms, quotes, limits, fees).
  • Audit log format: privacy-preserving by default, but compliance-grade when required.
